Ecumaster ADU with EMU classic or black¶

1. Select ECU preset¶

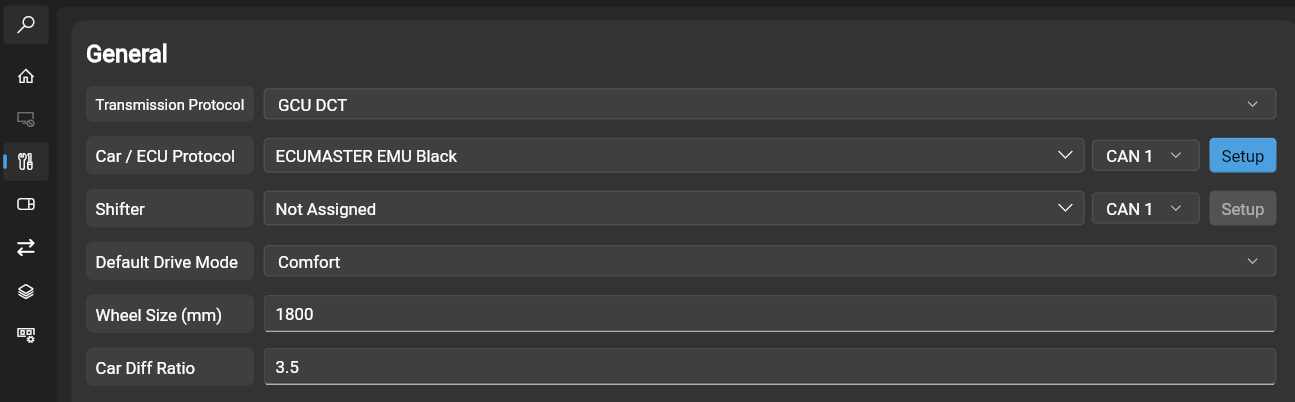

Select ECUMASTER EMU black for Car/ECU protocol:

2. Enable Can Switch board v3¶

Click on a setup button next to the Car/Ecu protocol.

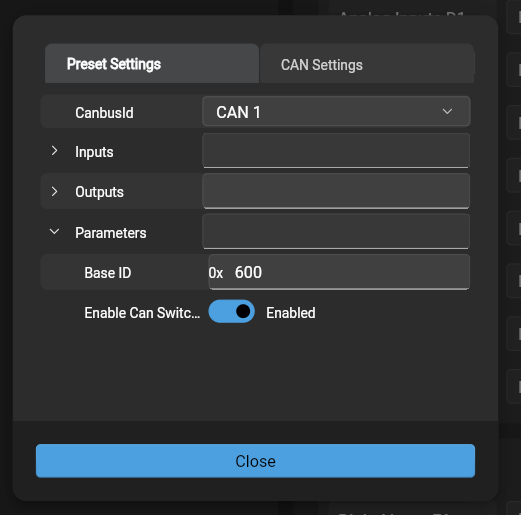

In setup window opem parameters and enable Can switch board v3:

3. Save the config to the GCU and reset the device¶

The can switch board analog channels have following functions:
Analog in 1 = current gear
Analog in 2 = target gear
Analog in 3 = transmission temperature
Analog in 4 = cut level
Analog in 5 = blip level
Analog in 6 = calculated vss
Analog in 7 = mode
Analog in 8 = gcu torque

4. In ADU software create message group¶

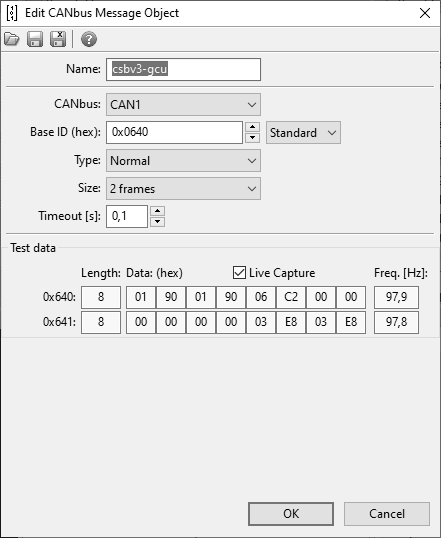

ID 0x640
size 2 frames.

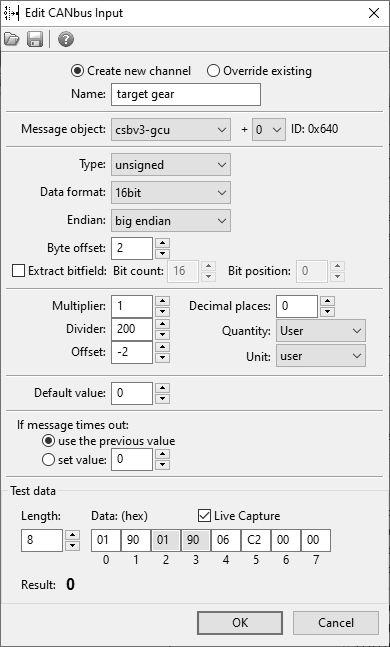

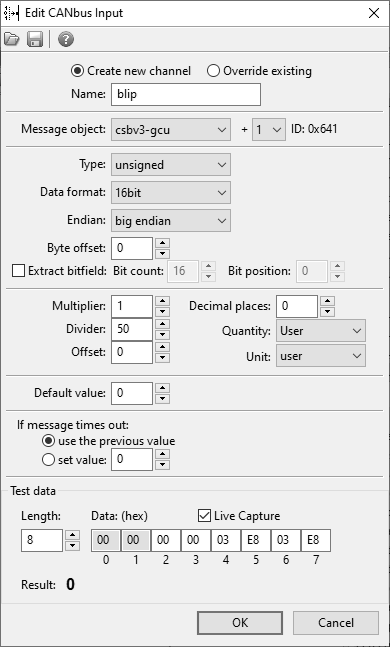

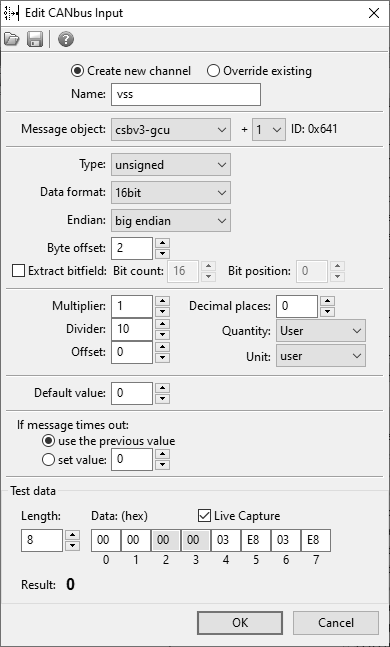

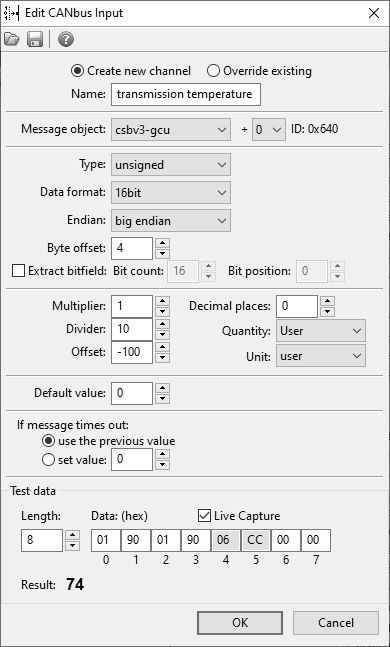

5. Setup Can Input channels¶
